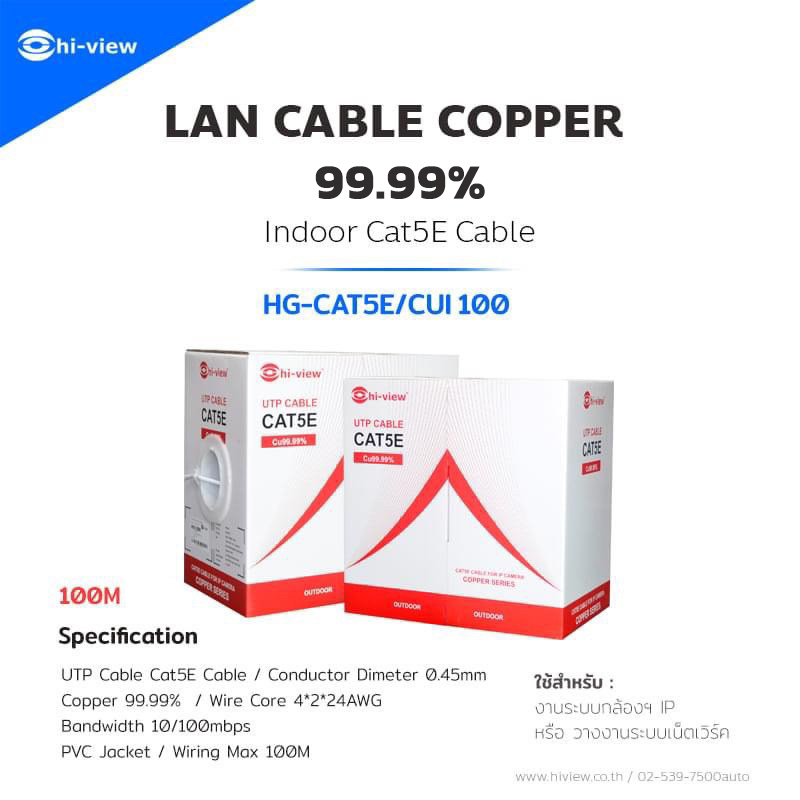

HG-CAT5E/CUI100 indoor
LAN Cable CAT5E / indoor / Copper 99.99%
Conductor dimeter 0.45 mm
Wire core 4*2*24AWG Jacket PVC
Bandwidth 10/100 Mbps
Wiring max 100 Meter
ขนาด 100 เมตร
HG-CAT5E/CUI300 indoor
LAN Cable CAT5E / indoor / Copper 99.99%
Conductor dimeter 0.45 mm
Wire core 4*2*24AWG Jacket PVC
Bandwidth 10/100 Mbps
Wiring max 100 Meter
ขนาด 300 เมตร
HG-CAT6/CUI100 indoor
LAN Cable CAT6 / indoor / Copper 99.99%
Conductor dimeter 0.45 mm
Wire core 4*2*24AWG Jacket PVC
Bandwidth 10/100/1000 Mbps
Wiring max 100 Meter
ขนาด 100 เมตร
HG-CAT6/CUI300 indoor
LAN Cable CAT6 / indoor / Copper 99.99%
Conductor dimeter 0.45 mm
Wire core 4*2*24AWG Jacket PVC
Bandwidth 10/100/1000 Mbps
Wiring max 100 Meter
ขนาด 300 เมตร
HG-CAT6/CUI300 indoor
LAN Cable CAT6 / indoor / Copper 99.99%
Conductor dimeter 0.45 mm
Wire core 4*2*24AWG Jacket PVC
Bandwidth 10/100/1000 Mbps
Wiring max 100 Meter
ขนาด 300 เมตร
HG-CAT5E/CUO100 Outdoor
LAN Cable CAT5E / Outdoor / Copper 99.99%
Conductor dimeter 0.44 mm
Wire core 4*2*24AWG Jacket PVC
Bandwidth 10/100 Mbps
Wiring max 100 Meter
ขนาด 100 เมตร
HG-CAT5E/CUO300 Outdoor
LAN Cable CAT5E / Outdoor / Copper 99.99%
Conductor dimeter 0.44 mm
Wire core 4*2*24AWG Jacket PVC
Bandwidth 10/100 Mbps
Wiring max 100 Meter
ขนาด 300 เมตร
HG-CAT5E/CUO500 Outdoor
LAN Cable CAT5E / Outdoor / Copper 99.99%
Conductor dimeter 0.44 mm
Wire core 4*2*24AWG Jacket PVC
Bandwidth 10/100 Mbps
Wiring max 100 Meter
ขนาด 500 เมตร
HP-ROBOT20-4-V2
คีมเข้าหัวLAN RJ45 พร้อมใบมีด
ใช้ได้กับ HV-RJ45H, HV-RJ45, HV-RJ45(CAT6)
HG-FCS20AB-M(IN)
Transmission range 20 KM, Single-mode single core
Port : 1*SC 100Mbps, 1*RJ45 100Mbps
part A+part B = one pair
DC5V 1A or 12V 0.4A
HG-FCS3AB(IN)
Transmission range 3 KM, Single-mode single core
Port : 1*SC 1000Mbps, 1*RJ45 1000Mbps
part A+part B = one pair
DC5V 1A or 12V 0.4A
HG-FCS20AB(IN)
Transmission range 20 KM, Single-mode single core
Port : 1*SC 1000Mbps, 1*RJ45 1000Mbps
part A+part B = one pair
DC5V 1A or 12V 0.4A
HG-NSC2P
ตัวแปลงสัญญาณสำหรับกล้อง IP Cam+PoE
PoE Synthesis Separation Converter
Support IEEE802.af/at
Maximum transmission distance: 220m
HG-SW8 8P8G
Smart PoE Switch/ Full Gigabit Poe Switch
8 Ports Gigabit up-link or 8 Port Gigabit Poe
Support IEEE 802.3af/at/bt
protocol, Bandwidth:1.6Gbps
6KV lightning protechtion, short-circuit protechtion
Poe watch dog AI function
Over Temperature protection
Mac address 8K, Power 120W
Size 187*139*43 mm
HG-SW10 4P8S1
Smart PoE Switch 10port
6E+2G+2G Smart PoE Switch
2 * gigabit RJ45+2 * gigabit RJ45 PoE port+6 * 100M / PoE
Support IEEE 802.3af/at protocol, Mac Address:8K;
6KV lightning protection,short-circuit protection
Power input: AC110V~240 / Power120W / 50～60Hz
size: 187*139*43mm
HS-SW10 2P8 BT-AI
PoE Ports: PoE1~8 100Mbps
PoE Ports: PoE7~8 100Mbps 60W
Uplink Ports: LAN1~2 100Mbps
200Mbps Full Duplex;10 or 100Mbps Half Duplex
Transmission Distance 130m
Bandwidth: 2.0Gbps Network Latency (10 to 100Mbps)
Networking standard: IEEE802.3af/at/bt.
Power input: AC 180V~240V
HH-SW6-2P4
Smart PoE Switch (Unmanaged)
Smart PoE Switch HUB 6port
RJ45 10/100Mbps + PoE x4, 10/100Mbps x2 Uplink
Support Vlan(On) wiring cable 250m (10Mbps/port)
Support IEEE802.3 af/at
HS-SW10 2P8 S1 HBT-AI
PoE Ports: PoE1~6 100Mbps
PoE Ports: PoE7~8 1000Mbps
PoE Ports: PoE7~8 1000Mbps 60W
Uplink Ports: LAN1~2 1000Mbps
SFP Ports: SFP1 1000Mbps
200Mbps Full Duplex;10 or 100Mbps Half Duplex
Transmission Distance 130m
Bandwidth: 11.2Gbps Network Latency (10 to 100Mbps)
Networking standard: IEEE802.3af/at/bt.
Power input: AC 180V~240V
HS-SW18 2P16 S1 HBT-AI
PoE Ports: PoE1~15 100Mbps
PoE Ports: PoE16 1000Mbps
60W PoE Ports: PoE15 100Mbps
PoE16 1000Mbps
Uplink Ports: LAN1~2/PoE16 1000Mbps
SFP Ports:SFP1 1000Mbps
200Mbps Full Duplex;10 or 100Mbps Half Duplex
Transmission Distance 250m
Bandwidth: 12.8Gbps Network Latency (10 to 100Mbps)
Networking standard: IEEE802.3af/at/bt.
Power input: AC 180V~240V
HS-SW26-2P24-HBT-AI
PoE Ports: PoE1~22 100Mbps
PoE Ports: PoE23~24 1000Mbps
60W PoE Ports: PoE23~24 1000Mbps
Uplink Ports: LAN1~2/PoE23~24 1000Mbps
200Mbps Full Duplex;10 or 100 or 1000Mbps Half Duplex
Bandwidth: 12.4Gbps
Networking Latency (10 to 1000Mbps)
Power input: AC 180V~240V / Total 300W
Mac address 8K
IEEE802.3af/at/bt, DC Port 5V1A DC Power output 6KV lighting Protection
